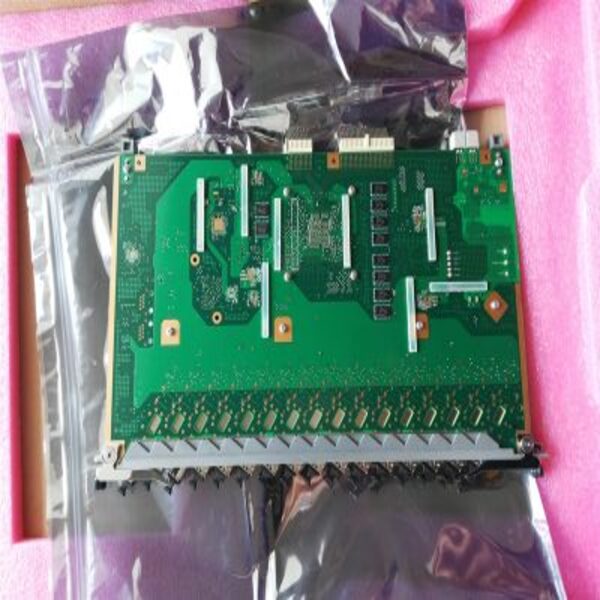

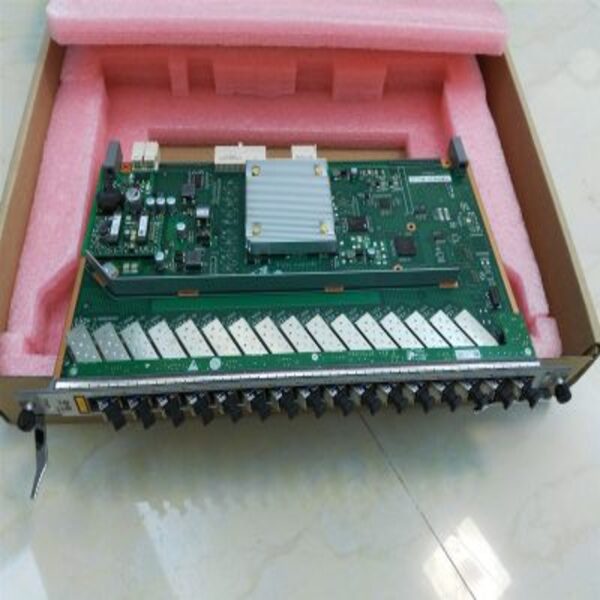

GPFD C++

Huawei:GPON OLT

Huawei

3,200,000 Ks

Apply to Huawei MA5683T, MA5680T, MA5608T OLT system Available at 3 versions: H802GPFD, H803GPFD, H805GPFD Support split ratio 1:128 Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s Interface Type: SC/PC Max Transmit Distance: 20KM Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4 C SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm

Details

GPFD Service Board Product Specifications

Model GPFD
GPON Port 16-GPON Port
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimum Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption H802GPFD : Static: 45 W, Maximum: 73 W
H803GPFD : Static: 39 W, Maximum: 61 W
H805GPFD : Static: 26 W, Maximum: 50 W
Maximum Frame Size 2004 bytes
Operating temperature -25°C to +65°C

GPFD Service Board Product Features

  • 16-GPON Port Interface Card with B+/C+/C++ SFP module
  • Apply to Huawei MA5683T, MA5680T, MA5608T OLT system
  • Available at 3 versions: H802GPFD, H803GPFD, H805GPFD
  • Support split ratio 1:128
  • Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s
  • Interface Type: SC/PC
  • Max Transmit Distance: 20KM
  • Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
  • Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
  • C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
  • Exchanging module to achieve the convergence of 16 GPON port signals.
  • Controlling modules to complete single board software loading, operation control, management and other functions.
  • providing a working power supply for each function module in a single board.
  • Realizing the mutual conversion between GPON optical signal and Ethernet message.
  • Providing a working clock for each function module in a single board.

GPFD Service Board and Related Board Datasheet

Board Model GPON Type Port NO. Optical Module Maximum Split Ratio ONU based shaping
H802GPBD 1G-GPON 8 SFP (Class B+ and Class C+) 0.130555556 No
H805GPBD/H806GPBD 1G-GPON 8 SFP (Class B+ and Class C+) 0.130555556 Yes
H802GPFD/H803GPFD/H805GPFD 1G-GPON 16 SFP (Class B+ and Class C+) 0.130555556 Yes
H806GPBH/H807GPBH 1G-GPON 8 SFP (Class B+ and Class C+) 0.130555556 Yes
H802XGBC 10G-GPON 4 XFP 0.130555556 Yes

GPFD Service Board and Related Boards

GPBD 8GPON Port (SFP Optical Module:Class B+,C+,C++), Version 802/805/806/807
GPBH 8GPON Port (SFP Optical Module:Class B+,C+,C++),Version 806/807
EPBD 8EPON Port (SFP Optical Module:PX20+), Version 802/808/809
EPSD 8EPON Port (SFP Optical Module:PX20+),
GPFD 16GPON Port (SFP Optical Module:Class B+,C+,C++),
EPFD 16EPON Port (SFP Optical Module:PX20+),
XGBD 8*10G GPON Port (SFP Optical Module:XGPON N1/XGPON N2),
XEBD 8*10G EPON Port (SFP Optical Module:10GEPON PRX30/10GEPON PR30),
GPHF 16 GPON Port (SFP Optical Module:Class B+,C+,C++),
GPSF 16 GPON Port (SFP Optical Module:Class B+,C+,C++),
GPLF 16 GPON Port (SFP Optical Module:Class B+,C+,C++),
EPHF 16 EPON Port (SFP Optical Module:PX20+),
XEHD 8 10G EPON Port (SFP Optical Module:PX30  PRX30),
XELD 8 10G EPON Port (SFP Optical Module:PX30  PRX30),
XGHD 8 XG-PON Port (SFP Optical Module:XGPON N1),
XGLD 8 XG-PON Port (SFP Optical Module:XGPON N1),
XGLF 16 XG-PON  Port (SFP Optical Module:XGPON N1),
XGSF 16 XG-PON Port (SFP Optical Module:XGPON N1),

GPFD Service Board Product Applications

                      Huawei GPFD Interface Card YCICT 16 PORT OLT SERVICE GPFD PRICE
