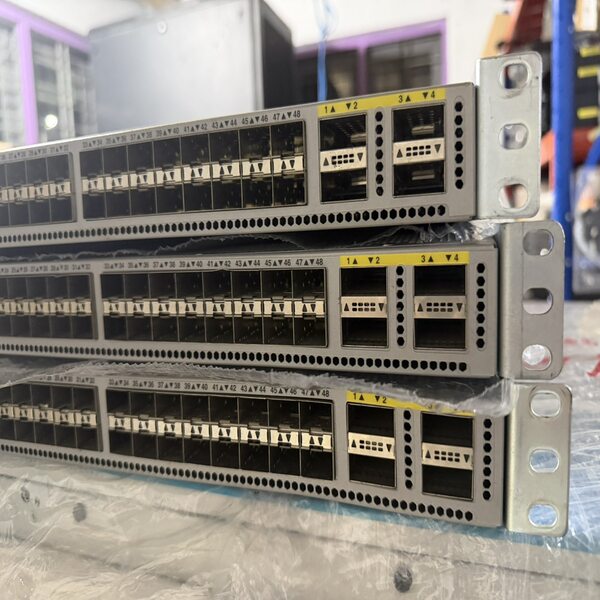

N3K-C3064PQ-10GX V01

Cisco:ROUTER & SWITCH

-

4,800,000 Ks

48 fixed 10Gbps SFP+ ports and 4 fixed 40Gbps QSFP+ ports.

Details

Technical Specifications

General
Device Type
Switch - 48 ports - L3 - managed
Enclosure Type
Rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
48 x SFP+ + 4 x QSFP+ (breakout compatible)
Performance
Switching capacity: 1.28 Tbps ¦ Forwarding performance: 950 Mpps
Capacity
Virtual interfaces (VLANs): 4096 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ ACL entries (ingress): 2000 ¦ ACL entries (egress): 1000 ¦ OSPF routes: 256
MAC Address Table Size
128K entries
Jumbo Frame Support
9216 bytes
Routing Protocol
OSPF, RIP-2, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD), CIDR
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Encryption Algorithm
AES
Authentication Method
RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
Features
BOOTP support, trunking, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), front to back airflow, EIGRP Stub Routing, STP Root Guard, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), DHCP relay, Strict Priority Queuing (SPQ), GRE tunneling, NTP time synchronization, 9MB packet buffer, STP PortFast, Class of Service (CoS), Virtual PortChannel (vPC) technology, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support
Compliant Standards
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 1588-2008
Flash Memory
2 GB
Expansion / Connectivity
Interfaces
1 x console RJ-45 management ¦ 2 x 1000Base-T RJ-45 management ¦ 48 x 10GBase-X SFP+ ¦ 4 x 40Gbit LAN QSFP+ (breakout compatible) ¦ 1 x USB Type A
Power
Power Device
Internal power supply - hot-plug
Installed Qty
2 (installed) / 2 (max)
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Power Provided
400 Watt
Voltage Required
AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN24, KN22 Class A, EN 300386
Software / System Requirements
Software Included
Cisco NX-OS Layer 3 Base Services
Dimensions & Weight
Width
17.3 in
Depth
19.9 in
Height
1.7 in
Weight
20.5 lbs
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - 1 year - response time: 10 days
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
10 - 85% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 95% (non-condensing)
