RG-AirMetro460G

Rujie & Reyee:ROUTER & SWITCH

554,400 Ks

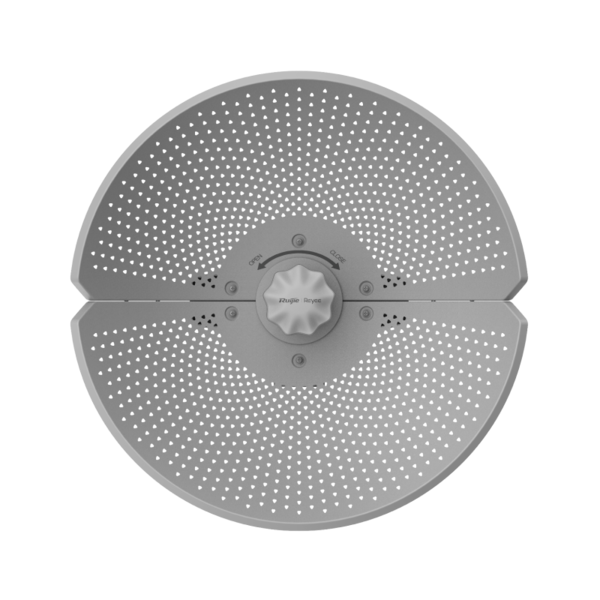

RG-AirMetro460G, CPE of RG-AirMetro Series Wireless Bridges

Condition

Stock Status

Quantity

Details

Highlight Features

PTP Max. 15 km Working Distance
PTMP Easy Pairing All in 30 sec
24 V Passive PoE
IP65, 6 kV Surge Protection and ±24 kV ESD against Harsh Environment
220.32 km/h (137 mph) Wind Survivability
All-in-one Cloud Management Simplifies the User Journey

Key Specifications

Hardware Specifications

Wi-Fi Radio

Radio design

Dual-radio
3 spatial streams
● Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO
● Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO

2.4 GHz channel width

Auto/20/40 MHz

5 GHz channel width

Auto/20/40/80 MHz

Antenna

Antenna horizontal orientation

Antenna vertical orientation

Dimensions and Weight

Product dimensions (W x D x H)

368.5 mm x 271 mm x 368.5 mm (14.51 in. x 10.67 in. x 14.51 in.) (Dimensions of the device after installation, including the mounting bracket.)

Power Supply and Consumption

Number of PoE In ports

Environment and Reliability

Operating temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

5% RH to 95% RH (non-condensing)

MTBF

400,000 hours (about 45 years)

IP rating

IP65

Software Specifications

WLAN

Bridge speed test

Network Management and Monitoring

SON

AI heatmap

Restarting devices through Ruijie Reyee App

SNMPv1, v2c, and v3

Applications

Product Model	Bridging Performance	RSSI (dBm)	Throughput & Camera Limits
Product Model	Bridging Performance	RSSI (dBm)	3 MP	4 to 5 MP	6 to 7 MP	7 to 8 MP
RG-AirMetro460G Wireless Bridge	230 Mbps/1 km (0.62 miles) (HT40) 200 Mbps/3 km (1.86 miles) (HT40) 150 Mbps/5 km (3.11 miles) (HT40) 80 Mbps/10 km (6.21 miles) (HT40)	–58 dBm/1 km (0.62 miles) –66 dBm/3 km (1.86 miles) –70 dBm/5 km (3.11 miles) –78 dBm/10 km (6.21 miles)	50/1 km (0.62 miles) 45/3 km (1.86 miles) 20/5 km (3.11 miles) 16/10 km (6.21 miles)	30/1 km (0.62 miles) 25/3 km (1.86 miles) 12/5 km (3.11 miles) 8/10 km (6.21 miles)	20/1 km (0.62 miles) 13/3 km (1.86 miles) 8/5 km (3.11 miles) 5/10 km (6.21 miles)	15/1 km (0.62 miles) 12/3 km (1.86 miles) 6/5 km (3.11 miles) 4/10 km (6.21 miles)
RG-AirMetro460F Wireless Bridge	80 Mbps/1 km (0.62 miles) (HT40) 80 Mbps/3 km (1.86 miles) (HT40) 70 Mbps/5 km (3.11 miles) (HT40) 50 Mbps/10 km (6.21 miles) (HT40)	–58 dBm/1 km (0.62 miles) –66 dBm/3 km (1.86 miles) –70 dBm/5 km (3.11 miles) –78 dBm/10 km (6.21 miles)	12/1 km (0.62 miles) 12/3 km (1.86 miles) 10/5 km (3.11 miles) 6/10 km (6.21 miles)	8/1 km (0.62 miles) 8/3 km (1.86 miles) 6/5 km (3.11 miles) 4/10 km (6.21 miles)	6/1 km (0.62 miles) 6/3 km (1.86 miles) 5/5 km (3.11 miles) 3/10 km (6.21 miles)	4/1 km (0.62 miles) 4/3 km (1.86 miles) 3/5 km (3.11 miles) 2/10 km (6.21 miles)
RG-AirMetro550G-B	Installing the device on the RG-ANT13-360： 179 Mbps/1 km (0.62 miles) (HT40) 111 Mbps/2 km (1.24 miles) (HT40) Installing the device on the RG-ANT16S-120： 204 Mbps/1 km (0.62 miles) (HT40) 153 Mbps/3 km (1.86 miles) (HT40) 94 Mbps/5 km (3.11 miles) (HT40) Installing the device on the RG-ANT20S-90： 204 Mbps/3 km (1.86 miles) (HT40) 153 Mbps/5 km (3.11 miles) (HT40) 77 Mbps/10 km (6.21 miles) (HT40)	Installing the device on the RG-ANT13-360： -64 dBm/1 km (0.62 miles) -70 dBm/2 km (1.24 miles) Installing the device on the RG-ANT16S-120： -58 dBm/1 km (0.62 miles) (HT40) -66 dBm/3 km (1.86 miles) (HT40) -72 dBm/5 km (3.11 miles) (HT40) Installing the device on the RG-ANT20S-90: -60 dBm/3 km (1.86 miles) (HT40) -66 dBm/5 km (3.11 miles) (HT40) -73 dBm/10 km (6.21 miles) (HT40)	Installing the device on the RG-ANT13-360： 41/1 km (0.62 miles) 26/2 km (1.86 miles) Installing the device on the RG-ANT20S-120： 47/1 km (0.62 miles) 35/3 km (1.86 miles) 22/5 km (3.11 miles) Installing the device on the RG-ANT20S-90： 47/3 km (1.86 miles) 35/5 km (3.11 miles) 18/10 km (6.21 miles)	Installing the device on the RG-ANT13-360： 25/1 km (0.62 miles) 15/2 km (1.24 miles) Installing the device on the RG-ANT16S-120： 28/1 km (0.62 miles) 21/3 km (1.86 miles) 13/5 km (3.11 miles) Installing the device on the RG-ANT20S-90: 28/3 km (1.86 miles) 21/5 km (3.11 miles) 10/10 km (6.21 miles)	Installing the device on the RG-ANT13-360： 18/1 km (0.62 miles) 11/2 km (1.24 miles) Installing the device on the RG-ANT16S-120： 20/1 km (0.62 miles) 15/3 km (1.86 miles) 9/5 km (3.11 miles) Installing the device on the RG-ANT20S-90: 28/3 km (1.86 miles) 21/5 km (3.11 miles) 10/10 km (6.21 miles)	Installing the device on the RG-ANT13-360： 15/1 km (0.62 miles) 9/2 km (1.24 miles) Installing the device on the RG-ANT16S-120 17/1 km (0.62 miles) 13/3 km (1.86 miles) 8/5 km (3.11 miles) Installing the device on the RG-ANT20S-90： 17/3 km (1.86 miles) 13/5 km (3.11 miles) 6/10 km (6.21 miles)
RG-EST100-E	60 Mbps/100 m (328.08 ft.) (HT20) 30 Mbps/500 m (0.31 miles) (HT20)	–58 dBm/100 m (328.08 ft.) –68 dBm/500 m (0.31 miles)	10/100 m (328.08 ft.) 5/500 m (0.31 miles)	6/100 m (328.08 ft.) 3/500 m (0.31 miles)	3/100 m (328.08 ft.) 1/500 m (0.31 miles)	3/100 m (328.08 ft.) 1/500 m (0.31 miles)
RG-EST310 V2	90 Mbps/100 m (328.08 ft.) (HT40) 80 Mbps/500 m (0.31 miles) (HT40) 80 Mbps/1 km (0.62 miles) (HT40) 40 Mbps/2 km (1.24 miles) (HT40)	–52 dBm/100 m (328.08 ft.) –65 dBm/500 m (0.31 miles) –68 dBm/1 km (0.62 miles) –75 dBm/2 km (1.24 miles)	16/100 m (328.08 ft.) 16/500 m (0.31 miles) 16/1 km (0.62 miles) 6/2 km (1.24 miles)	10/100 m (328.08 ft.) 10/500 m (0.31 miles) 10/1 km (0.62 miles) 4/2 km (1.24 miles)	7/100 m (328.08 ft.) 7/500 m (0.31 miles) 7/1 km (0.62 miles) 3/2 km (1.24 miles)	5/100 m (328.08 ft.) 5/500 m (0.31 miles) 5/1 km (0.62 miles) 2/2 km (1.24 miles)
RG-EST350 V2	230 Mbps/1 km (0.62 miles) (HT40) 200 Mbps/3 km (1.86 miles) (HT40) 150 Mbps/5 km (3.11 miles) (HT40)	–58 dBm/1 km (0.62 miles) –66 dBm/3 km (1.86 miles) –70 dBm/5 km (3.11 miles)	50/1 km (0.62 miles) 45/3 km (1.86 miles) 20/5 km (3.11 miles)	30/1 km (0.62 miles) 25/3 km (1.86 miles) 12/5 km (3.11 miles)	20/1 km (0.62 miles) 13/3 km (1.86 miles) 8/5 km (3.11 miles)	15/1 km (0.62 miles) 12/3 km (1.86 miles) 6/5 km (3.11 miles)
RG-EST330F-P	90 Mbps/0.5 km (0.31 miles) (HT40) 80 Mbps/1 km (0.62 miles) (HT40) 60 Mbps/2 km (1.24 miles) (HT40) 40 Mbps/3 km (1.86 miles) (HT40)	-53 dBm/0.5 km (0.31 miles) -59 dBm/1 km (0.62 miles) -65 dBm/2 km (1.24 miles) -70 dBm/3 km (1.86 miles)	18/0.5 km (0.31 miles) 16/1 km (0.62 miles) 12/2 km (1.24 miles) 8/3 km (1.86 miles)	12/0.5 km (0.31 miles) 10/1 km (0.62 miles) 8/2 km (1.24 miles) 5/3 km (1.86 miles)	8/0.5 km (0.31 miles) 7/1 km (0.62 miles) 5/2 km (1.24 miles) 3/3 km (1.86 miles)	5/0.5 km (0.31 miles) 5/1 km (0.62 miles) 2/2 km (1.24 miles) 1/3 km (1.86 miles)
RG-EST350G	230 Mbps/1 km (0.62 miles) (HT40) 200 Mbps/3 km (1.86 miles) (HT40) 150 Mbps/5 km (3.11 miles) (HT40)	–56 dBm/1 km (0.62 miles) –64 dBm/3 km (1.86 miles) –68 dBm/5 km (3.11 miles)	50/1 km (0.62 miles) 45/3 km (1.86 miles) 20/5 km (3.11 miles)	30/1 km (0.62 miles) 25/3 km (1.86 miles) 12/5 km (3.11 miles)	20/1 km (0.62 miles) 13/3 km (1.86 miles) 8/5 km (3.11 miles)	15/1 km (0.62 miles) 12/3 km (1.86 miles) 6/5 km (3.11 miles)
RG-EST450G	200 Mbps/1 km (0.62 miles) (HT40) 130 Mbps/3 km (1.86 miles) (HT40) 80 Mbps/5 km (3.11 miles) (HT40)	–59 dBm/1 km (0.62 miles) –67 dBm/3 km (1.86 miles) –73 dBm/5 km (3.11 miles) (Pairing with the CPE RG-EST350G)	40/1 km (0.62 miles) 30/3 km (1.86 miles) 15/5 km (3.11 miles)	25/1 km (0.62 miles) 18/3 km (1.86 miles) 10/5 km (3.11 miles)	18/1 km (0.62 miles) 10/3 km (1.86 miles) 7/5 km (3.11 miles)	13/1 km (0.62 miles) 8/3 km (1.86 miles) 5/5 km (3.11 miles)
