RG-RAP2200(E)

Rujie & Reyee:ROUTER & SWITCH

Rujie & Reyee

511,500 Ks

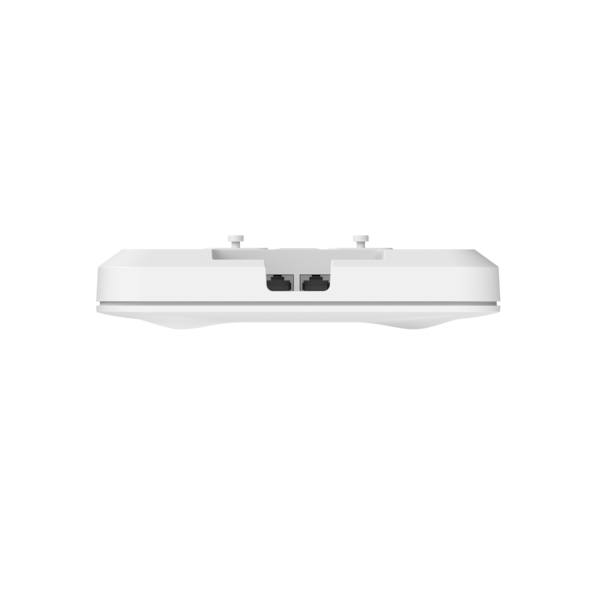

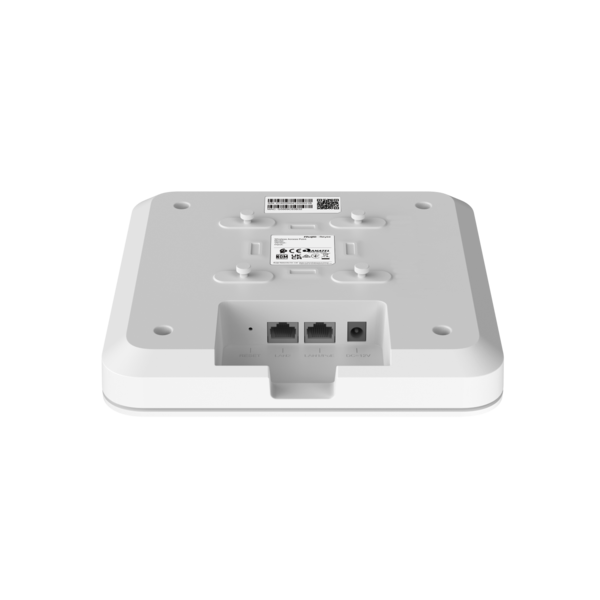

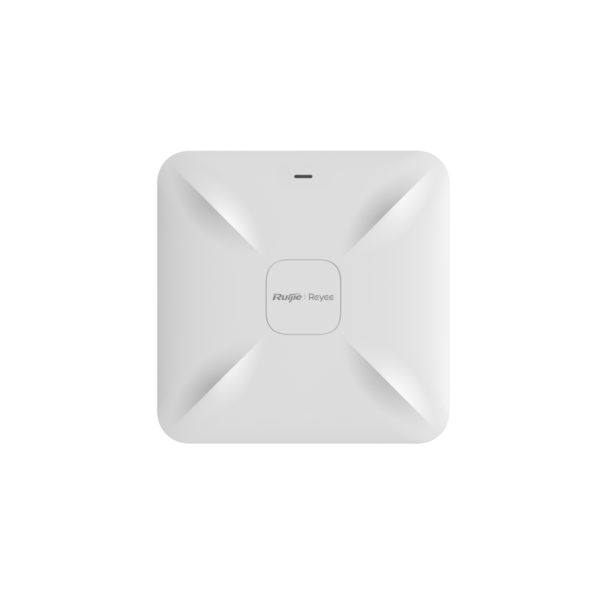

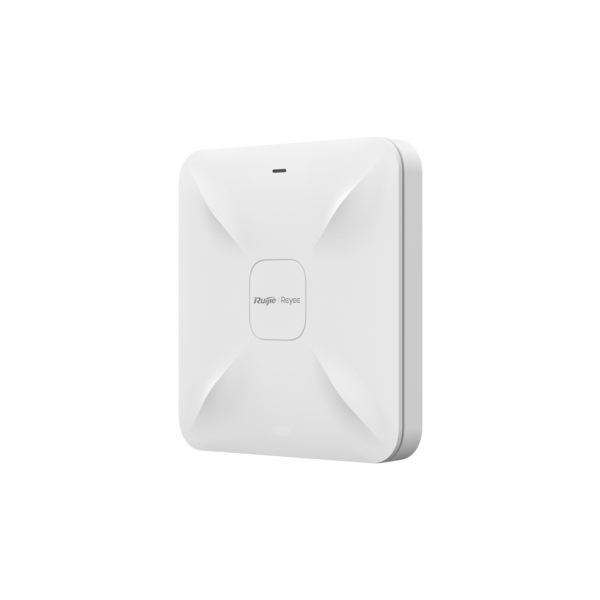

RG-RAP2200(E) Reyee Wi-Fi 5 1267Mbps Ceiling Access Point

Details

Key Specifications
Product Information
Product Type
Product Type
  • Ceiling AP
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    4 spatial streams
    ● 2.4 GHz: 2 x 2, MIMO
    ● 5 GHz: 2 x 2, MIMO
Maximum wireless data rate
  • 1266 Mbps
6 GHz wireless data rate
  • No
5 GHz wireless data rate
  • 866 Mbps
2.4 GHz wireless data rate
  • 400 Mbps
Antenna
Antenna
  • 2.4 GHz: 2 built-in omnidirectional antennas
    5 GHz: 2 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (W x D x H)
  • 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket)
Color
  • White
Weight
  • ≤ 0.45 kg (0.99 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports
  • 2
Power Supply and Consumption
Power supply
  • ● DC power adapter
    ● PoE/PoE+
    Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
  • Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector
  • Outer diameter: 5.5 mm (0.22 in.)
    Inner diameter: 2.1 mm (0.08 in.)
    Depth: 10 mm (0.39 in.)
PoE budget
  • No
Maximum power consumption
  • 12.95 W
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Mounting options
  • Ceiling/Wall
IP rating
  • No
Software Specifications
WLAN
Maximum number of associated wireless clients
  • 64 (2.4 GHz)
    110 (5 GHz)
    110 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
  • 300
IP Service
IPv6
  • Yes
Order Information
Mounting Bracket
1
Cross Pan Head Screw 2
Expansion Anchor 2
Quick Start Guide 1
Warranty Card 1
Package Weight  0.64Kg
Package Dimension (w x d x h)  197 mm x 197 mm x 63


4.5 (Overall)

  • 5 stars - 38
  • 4 stars - 10
  • 3 stars - 3
  • 2 stars - 1
  • 1 star - 0

Latest Reviews

No reviews yet.
